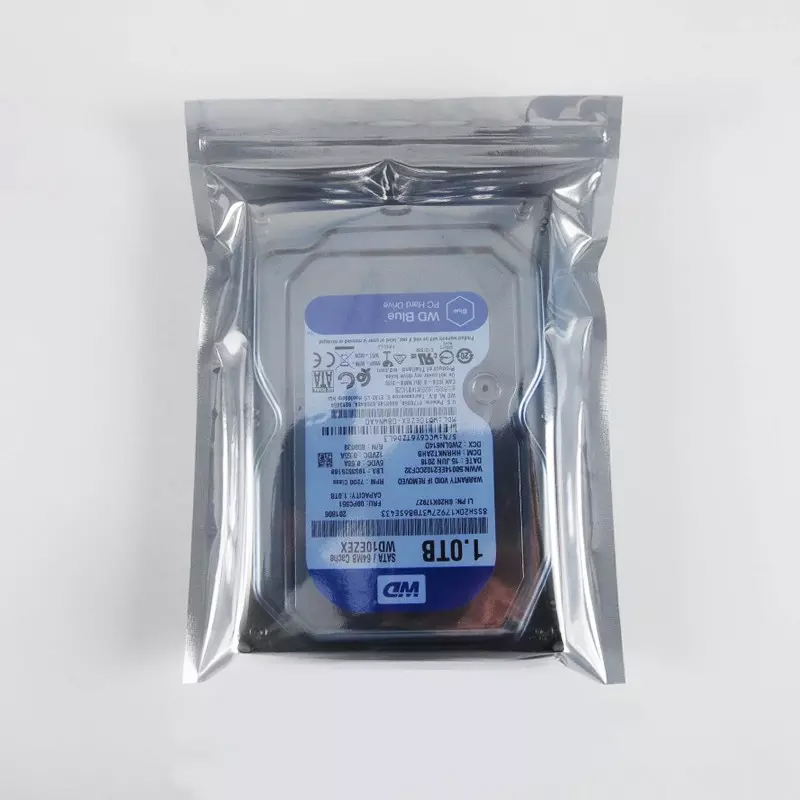

Hard disk circuit clear seal mylar plastic packaging antistatic esd shield anti-static shielding bag for electronic products

 Hard disk circuit clear seal mylar plastic packaging antistatic esd shield anti-static shielding bag for electronic products

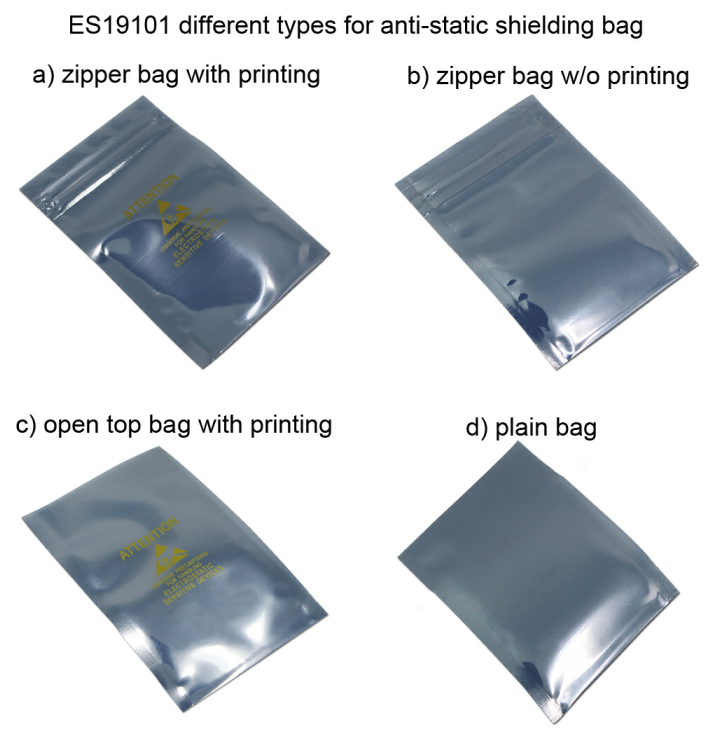

DIFFERENT SIZES LOW COST CLOSABLE ZIPPER ANTI STATIC CONTROL PACKAGING BAGS

It is suitable for packing of PCB, IC and other static sensitive components.
The kind of bag can keep static-sensitive components away from the potential static danger to the largest extent.
Its special four -layer structure can create such effect as an inductive cover to separate the goods inside from the static field.
The inner layer is made from ethane which can remove the static and avoid static generation inside the bag.

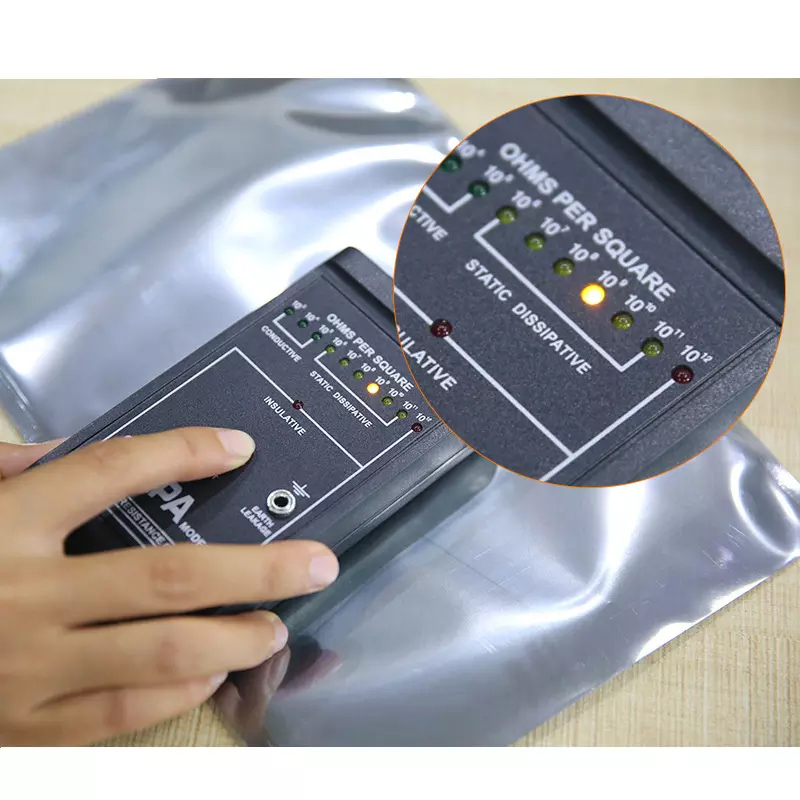

This kind of hot seal bag is transparent, so the goods inside can be easily recognized from outside. The surface resistance:
10e8～10e11Ω

Features:
*Material:3-layer compound structure
*Static shielding:<30V
*Static discharging time:<0.03S
*Surface resistance:10^9~10^11 Ohm
*Suitable for PCB,IC and other static sensitive components packing

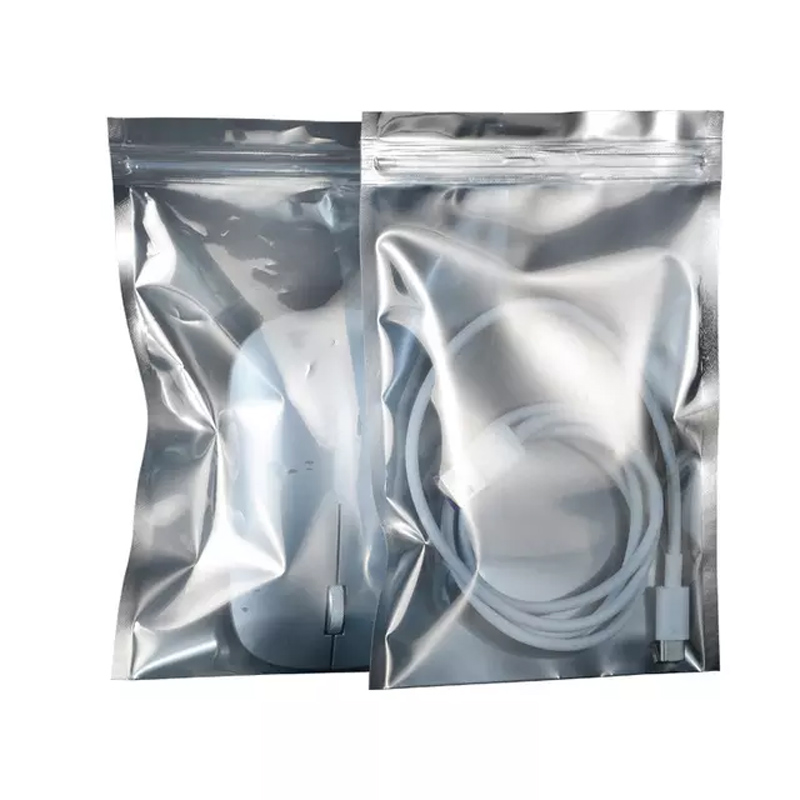

*Feature:half transparent design in easy to check the item inside
*Standard:ASTMD257,ELA541,MIL-B1705

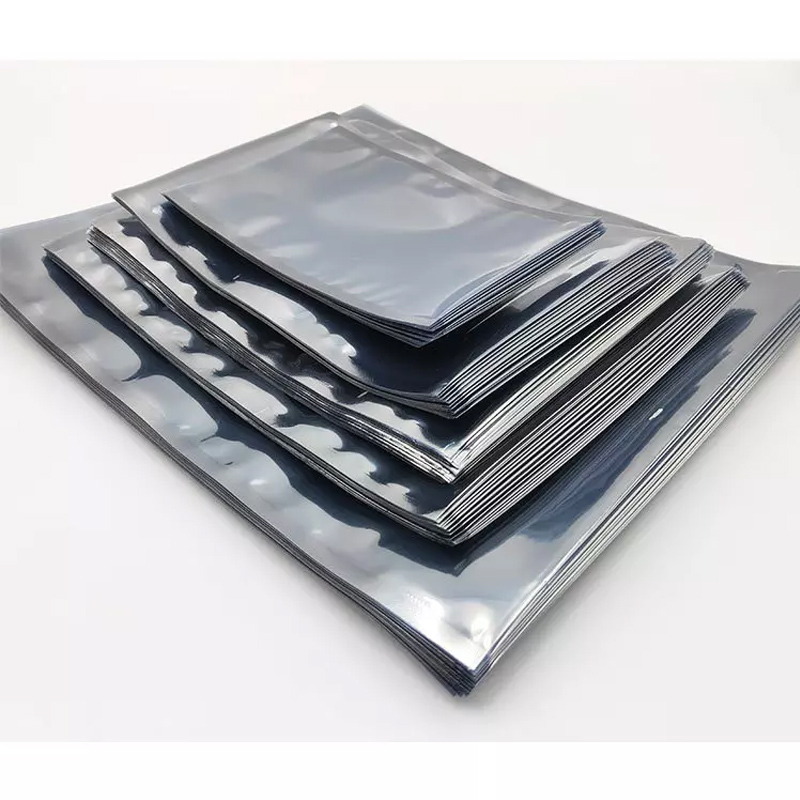

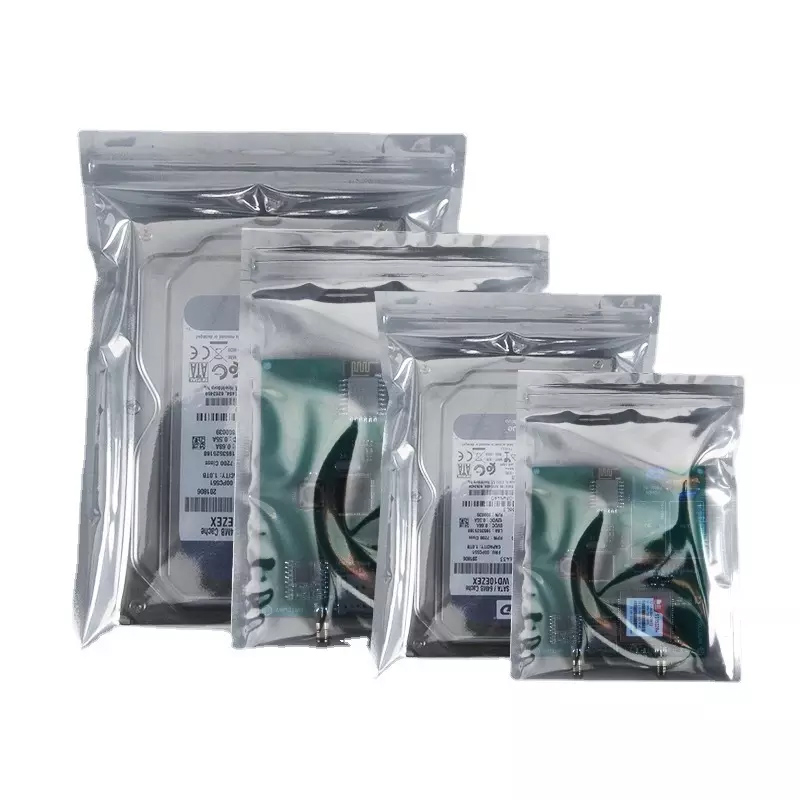

*Different sizes available

Notice:
*Standard thickness 0.074mm
*Open top
*Open from the small side
*Two or three sides 5mm seal
*Zipper from the open top 15mm
